FULL-WIDTH IMPLEMENT EQUIPMENT TRAILERS

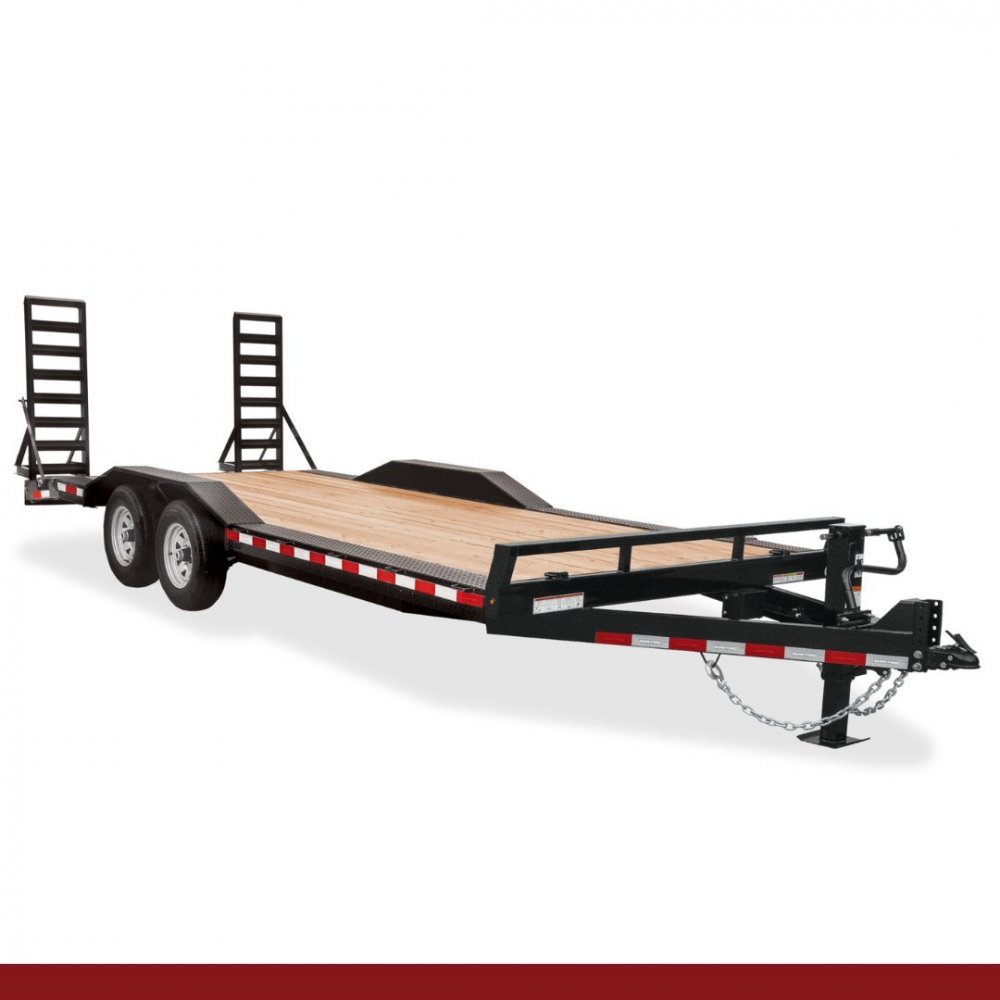

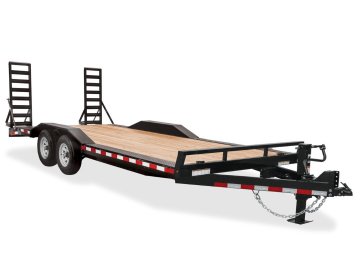

20' + 2' 14k Sure-Trac 10222FWET-B-140 Equipment



Frame - 6" C-Channel
Cross Members - 3" C-Channel (16" On-Center)
Tongue - 6" C-Channel

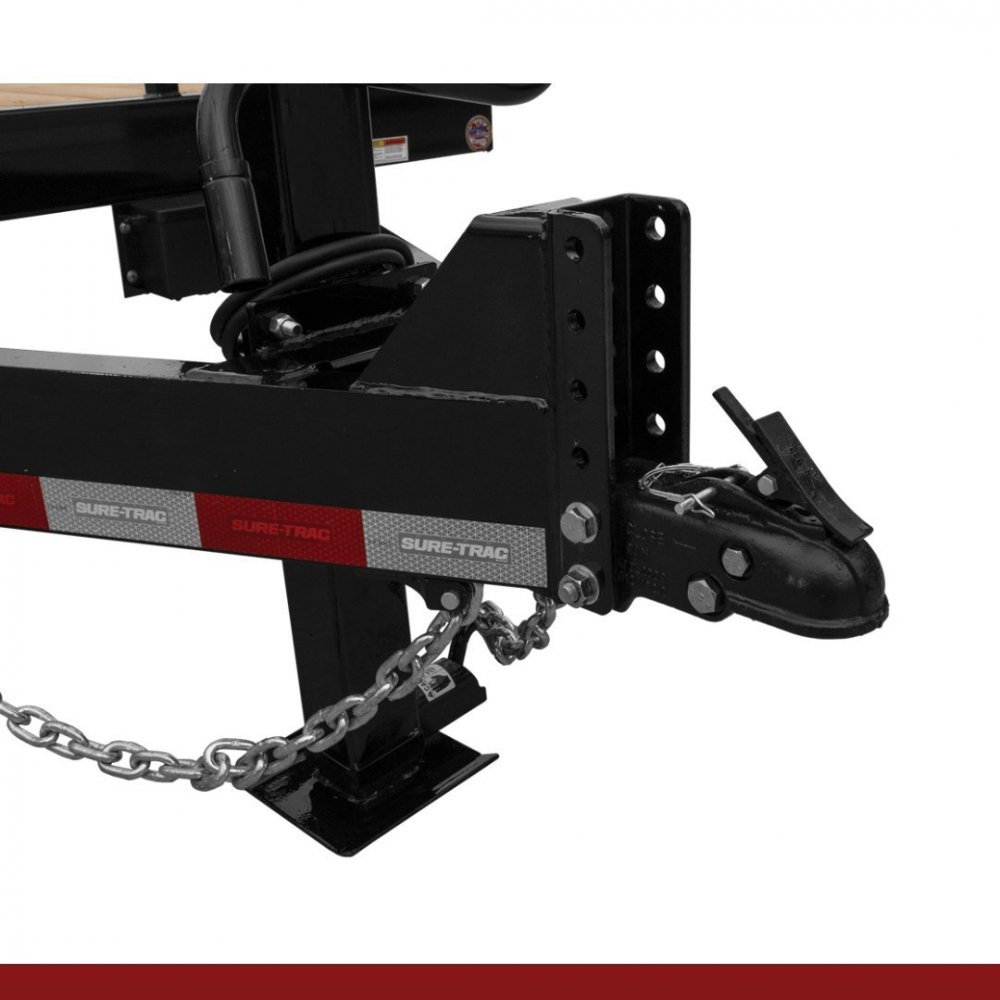

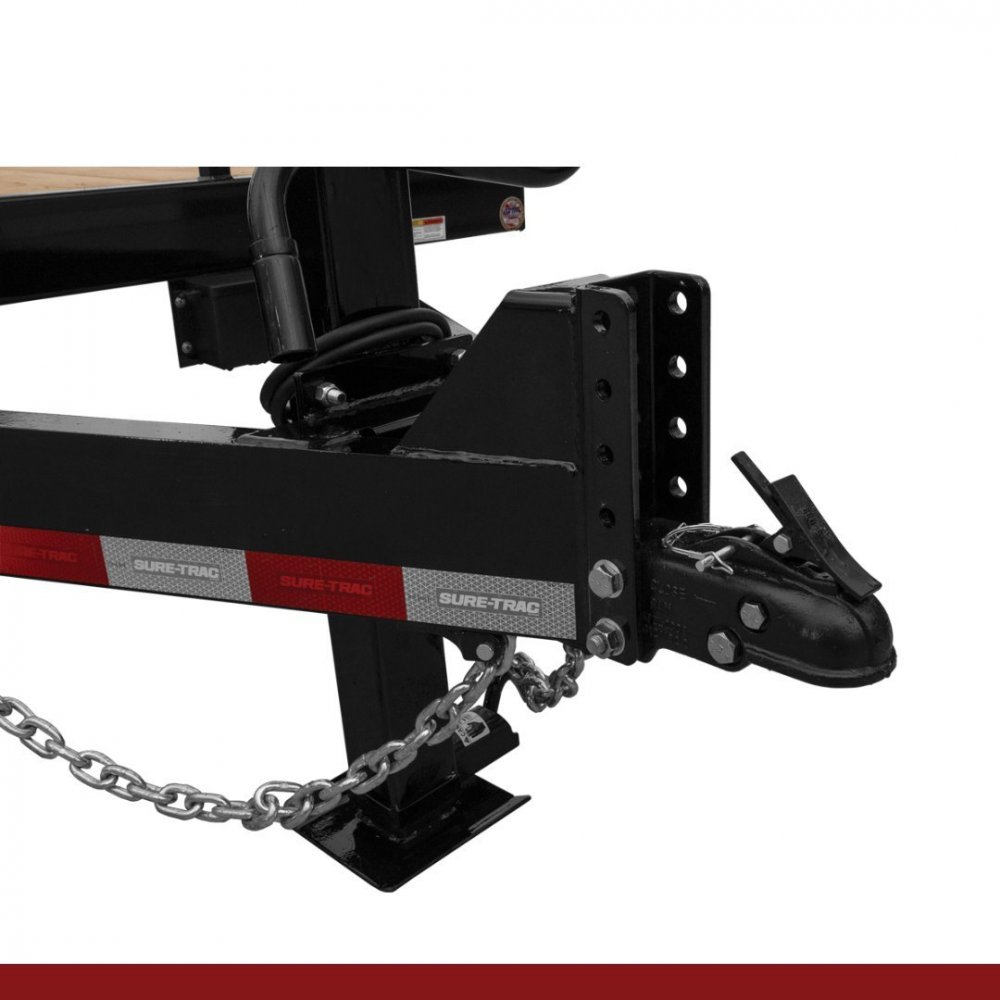

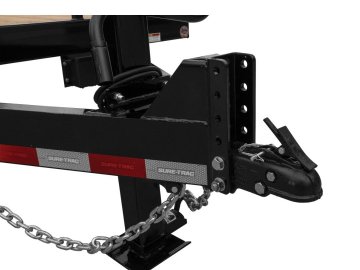

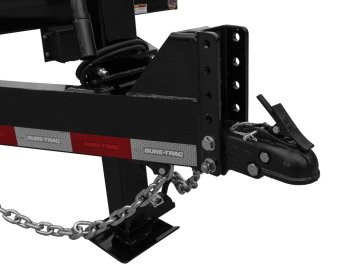

Coupler - Adjustable 2-5/16" Ball Coupler
Jack - Setback HD 12K Drop Leg Jack
Fenders - Drive-Over HD Double Brake Tread Plate
Axles - Easy Lube Hubs with Brakes
Suspension - Slipper Spring
Tires - 235/80R16 LRE
Wheels - 16", 8 on 6.5, Radia
Decking - 2 x 6 Pressure Treated Pine
Lights - All LED Lights
Electric Plug - 7-Way RV-Style Molded Plug
Finish - Powder Coated High Gloss Black
Overall Length/Flat - 321"/240"
Drop-Tail length - 26"
Bed Width - 82"
Deck Height - 24"
Coupler Height - Adjustable 19" - 27"
Ramps - HD 4" C-Channel Spring-Assist Ramps with Adjustable Support Legs

Additional Features:

HD Tube Bulkhead
Safety Chains
Breakaway Switch with Battery
EverLink?? Wiring Harness
Sealed Brake Connections
2' Tread Plate Beavertail

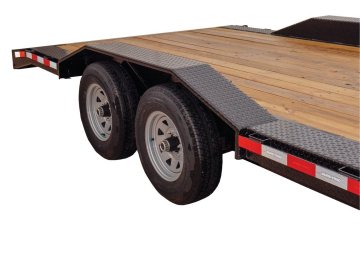

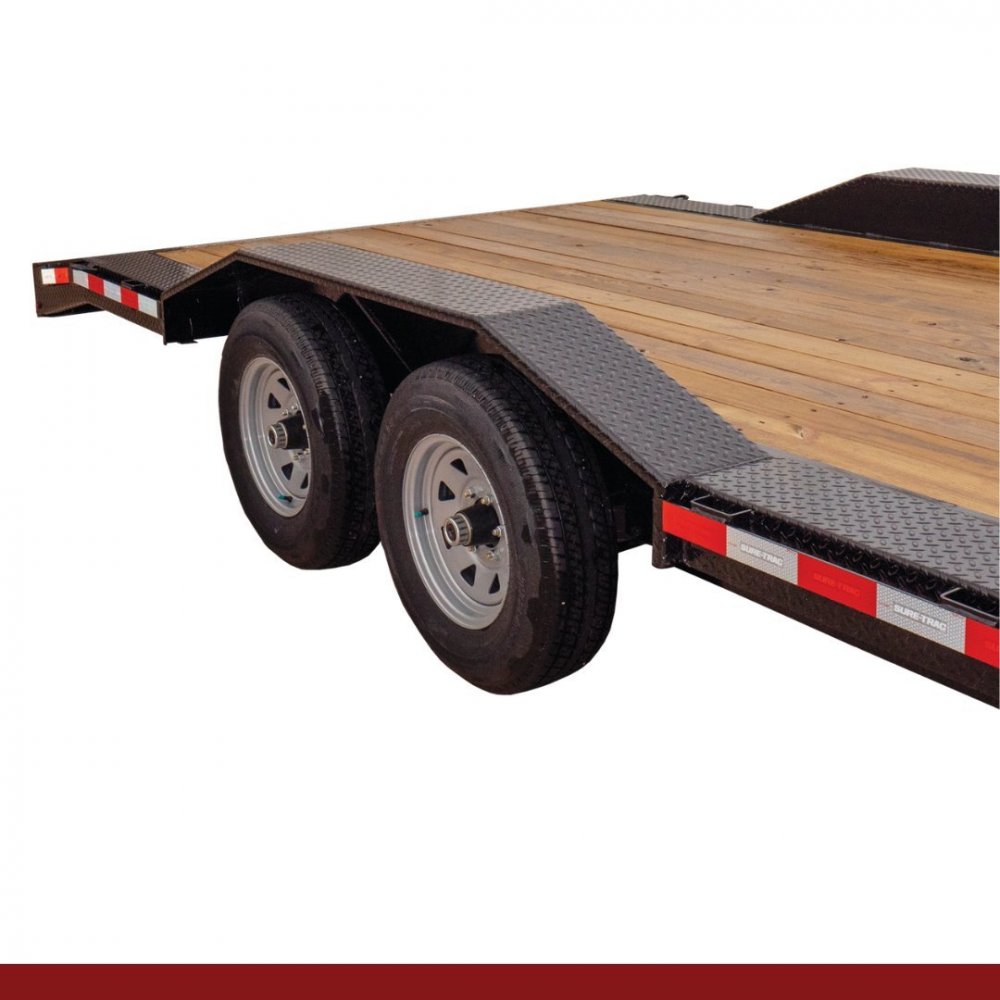

Drive-Over Fenders
Tread Plate Outriggers
Rear Board Retainers

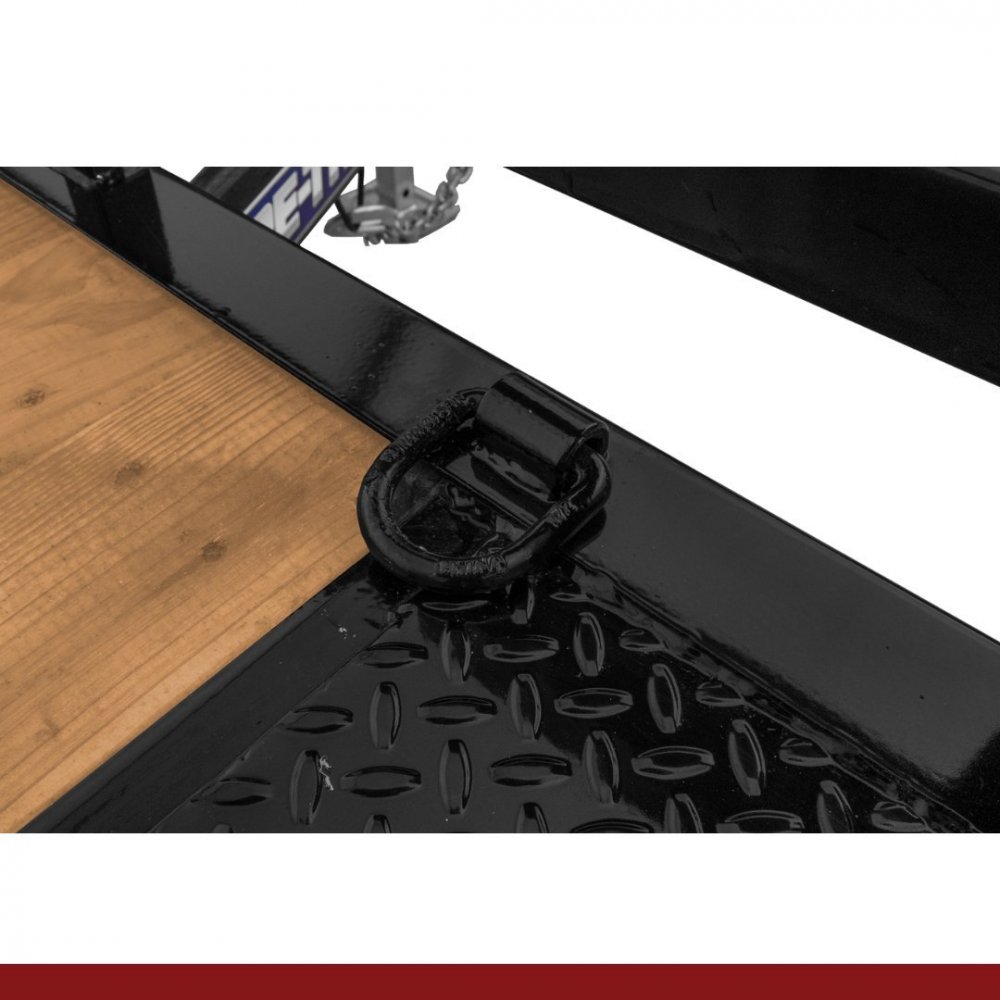

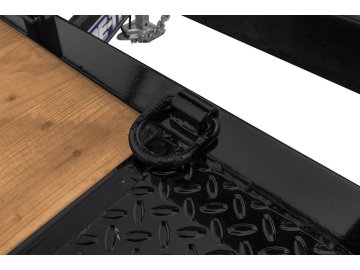

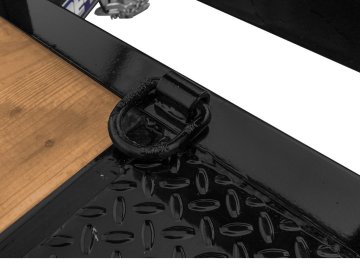

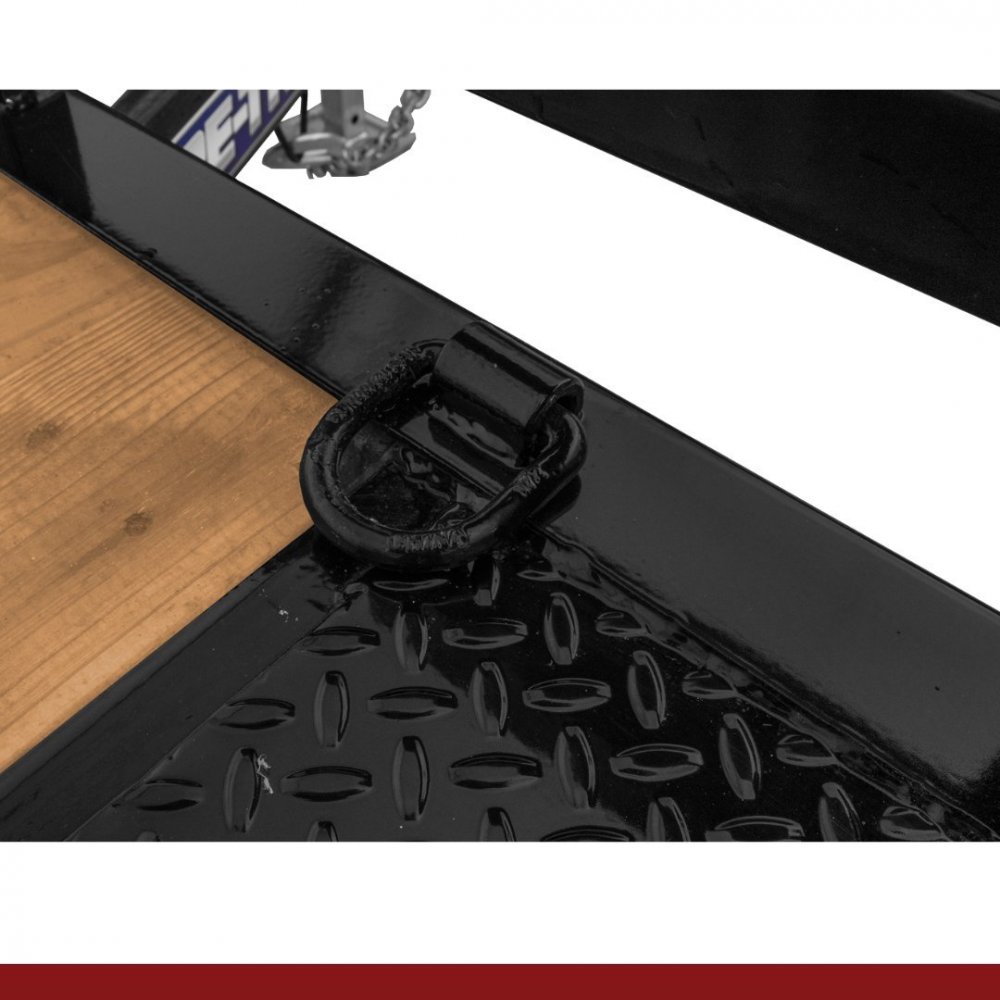

(4) D-Rings
Stake Pockets and Rub Rail

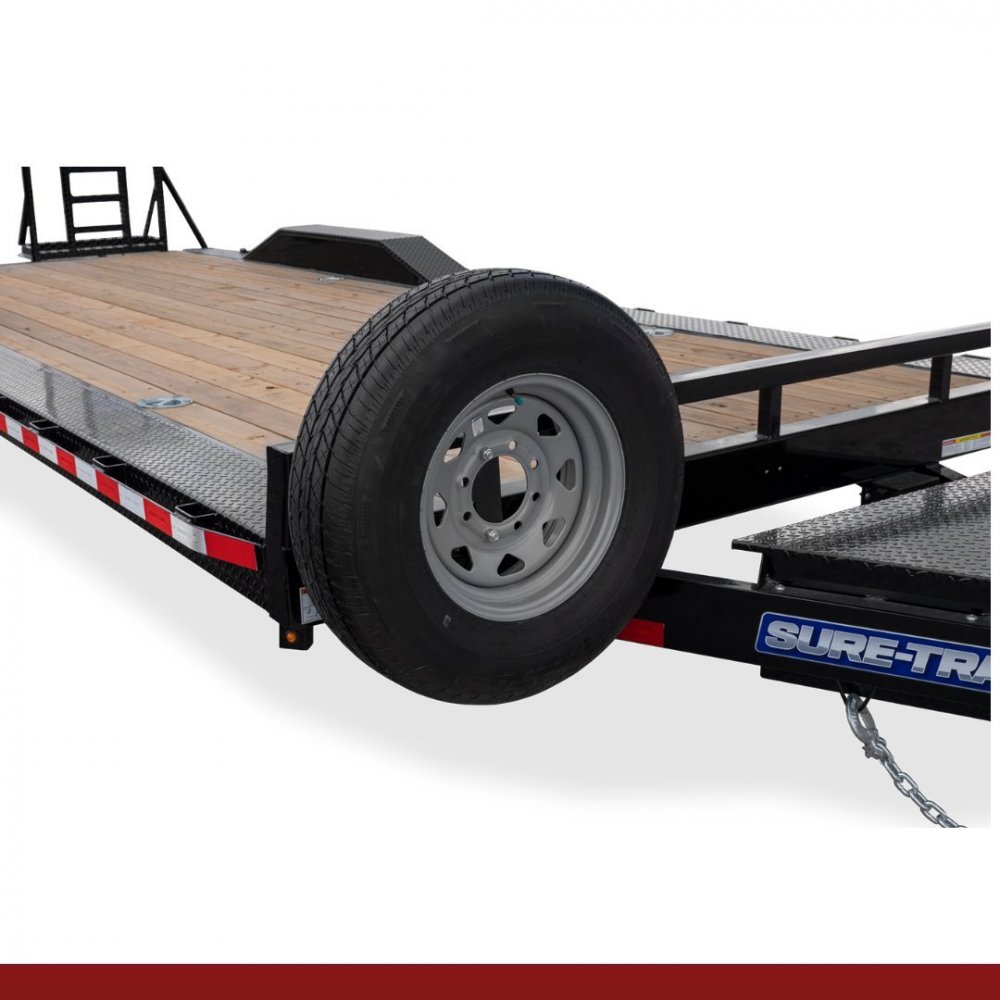

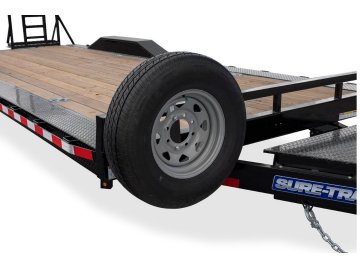

Spare Tire Carrier
Limited 3-Year Warranty
