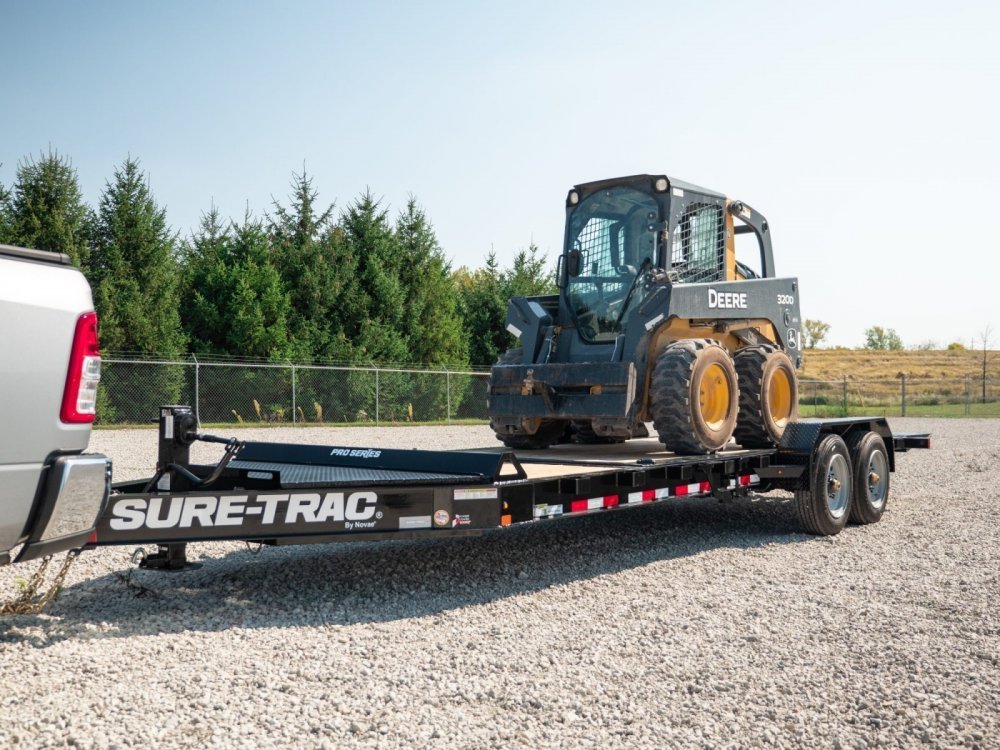

PRO SERIES TILT BED EQUIPMENT EQUIPMENT TRAILERS

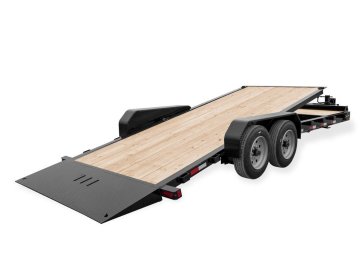

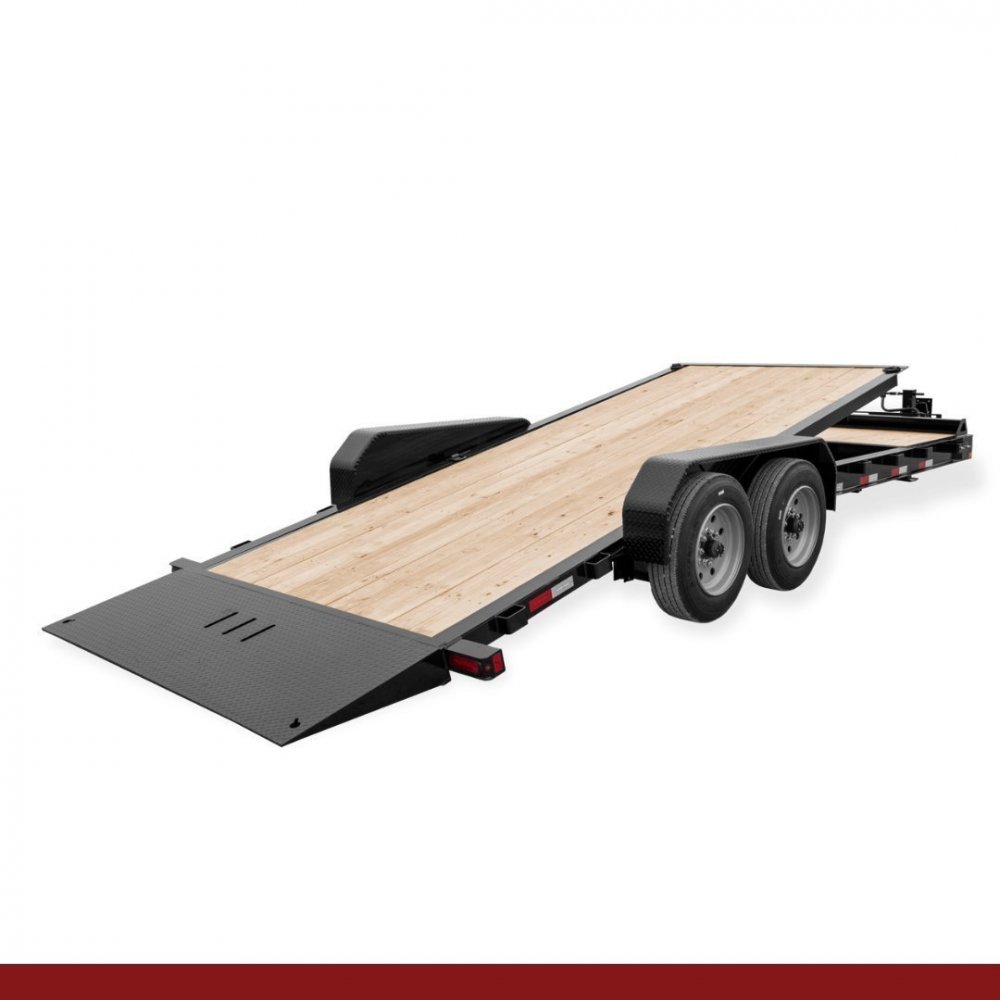

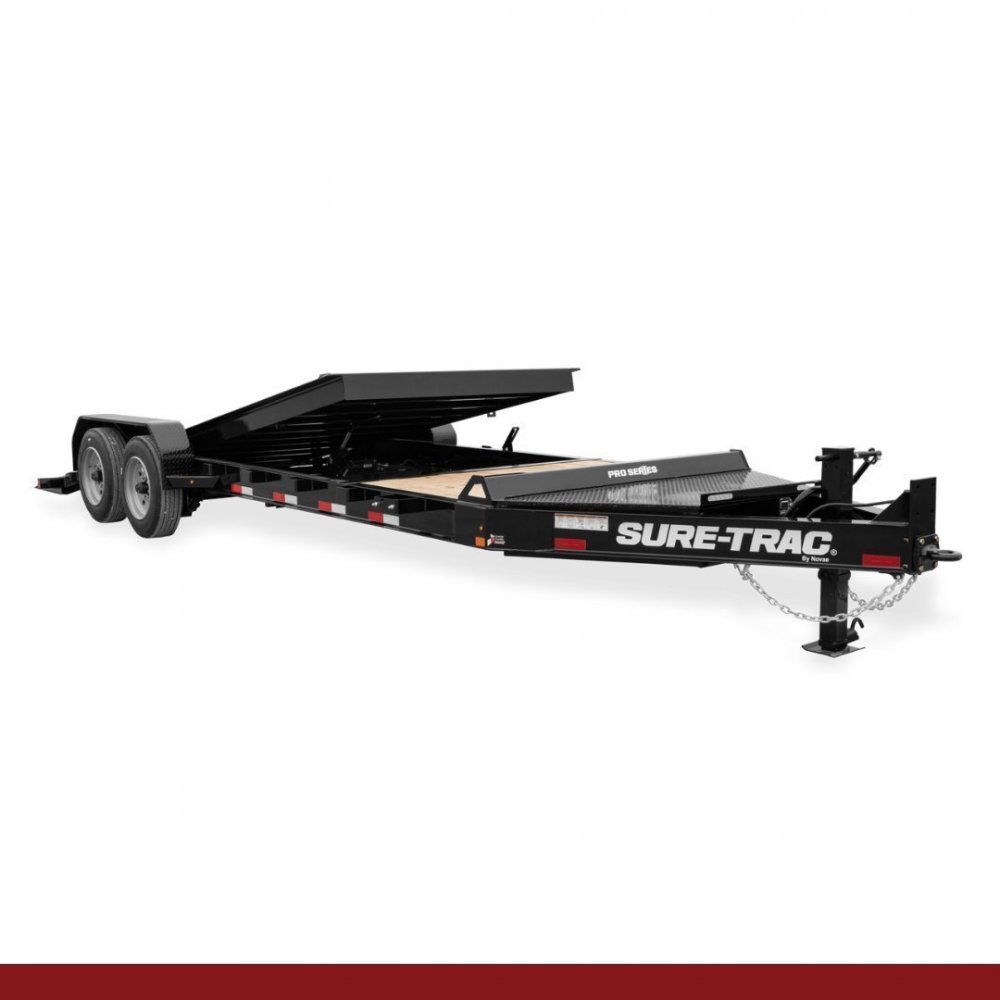

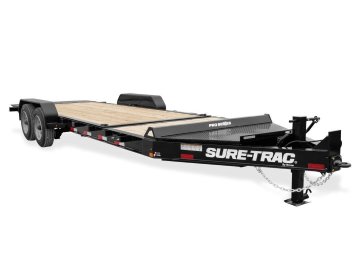

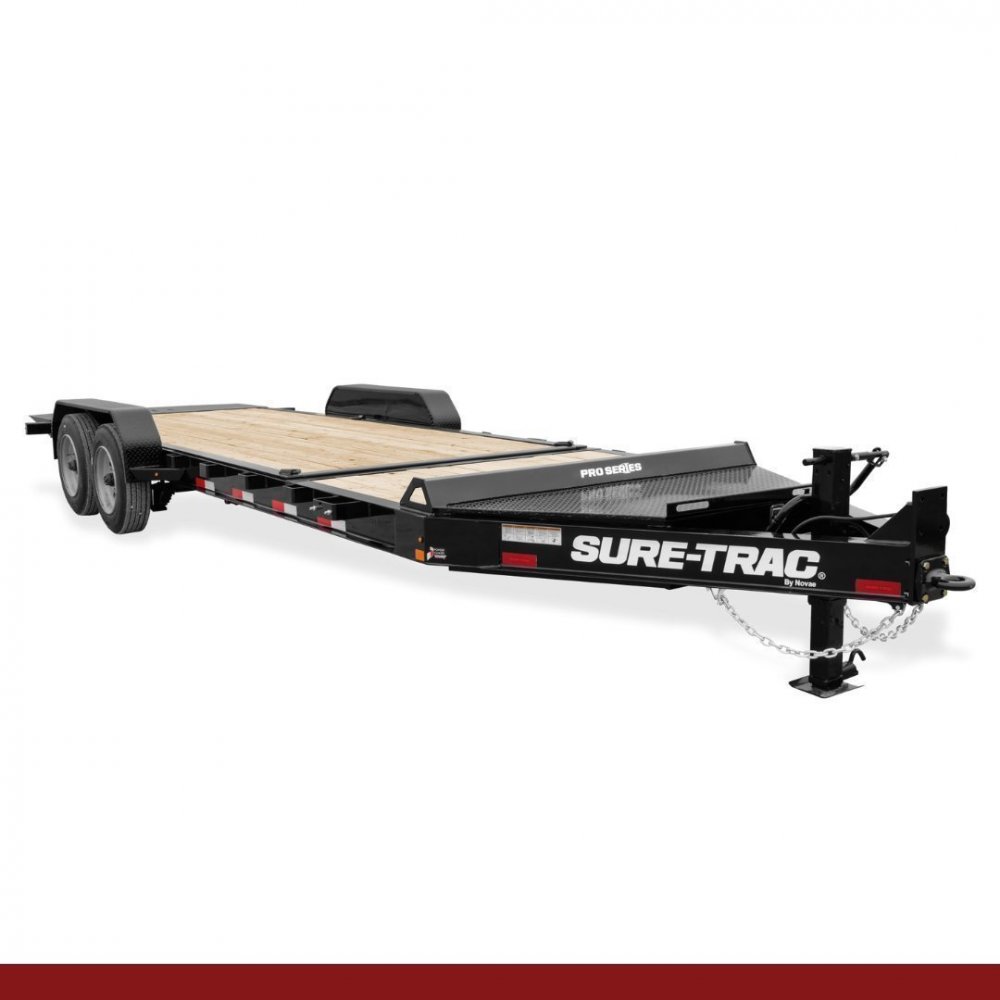

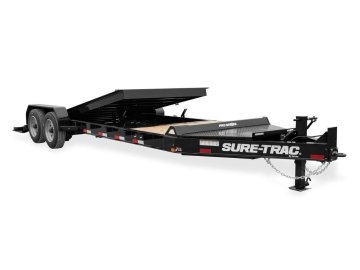

20' , 22K Sure-Trac BTE8220-BP-220 Equipment



Frame -  W8x15 Beam
Tilting Deck Frame - 6x6x5/16 Reinforced Angle
Cross Members - 3x2 11ga Tube (16" On-Center)
Tongue - W8x13 Beam

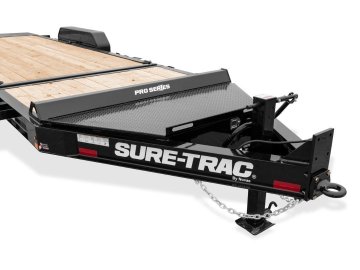

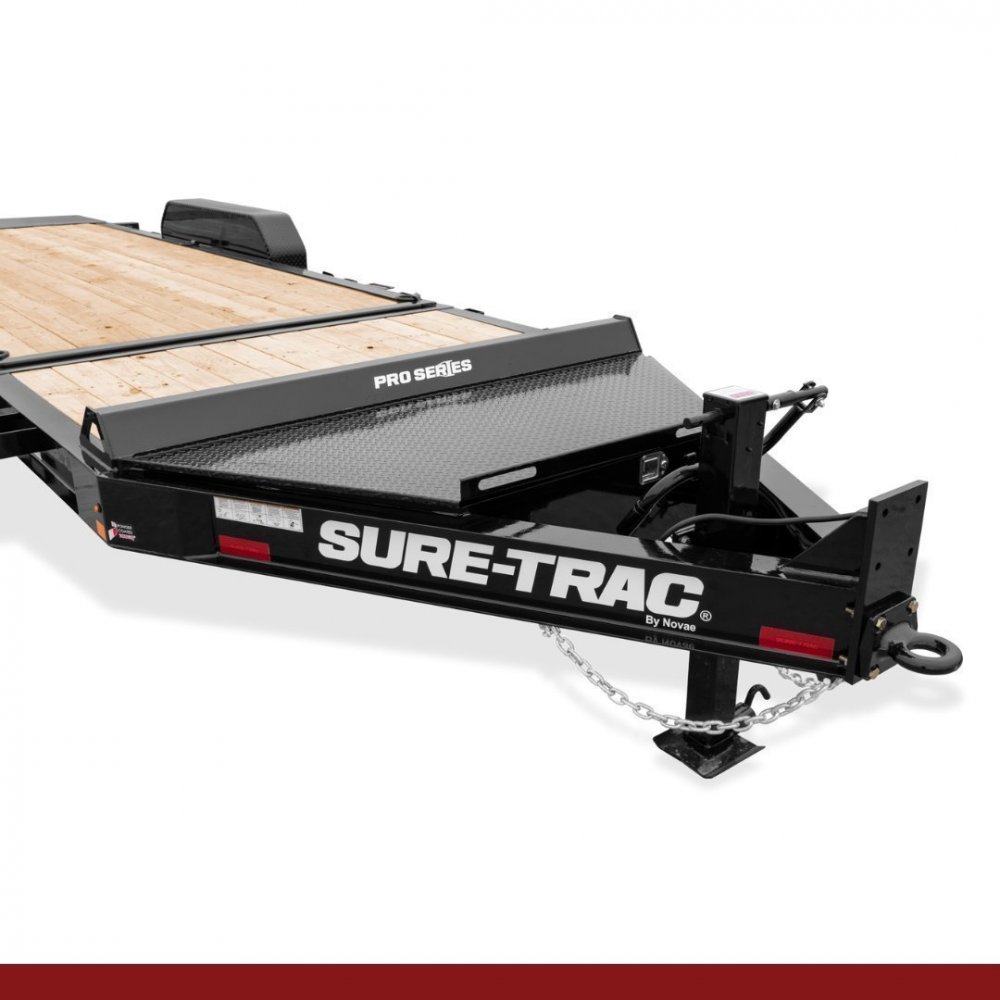

Coupler - Adjustable 4-Bolt Nose Plate Pintle Eye
Jack - Setback HD 2-Speed 12K Drop Leg Jack
Fenders - HD Reinforced Tread Plate Fenders
Axles - Oil Bath Hubs with Brakes
Suspension - Torsion
Tires - 215/75R17.5 LRH
Wheels - 17.5", 8 on 6.5, Radial
Decking - 2 x 6 Pressure Treated Pine
Lights - All LED Lights
Electric Plug - 7-Way RV-Style Molded Plug
Finish - Powder Coated High Gloss Black
Length (Overall/Bed) - 314" / 247"
Between Fenders - 82"
Deck Height - 26"
Coupler Height - Adjustable 17" - 26"

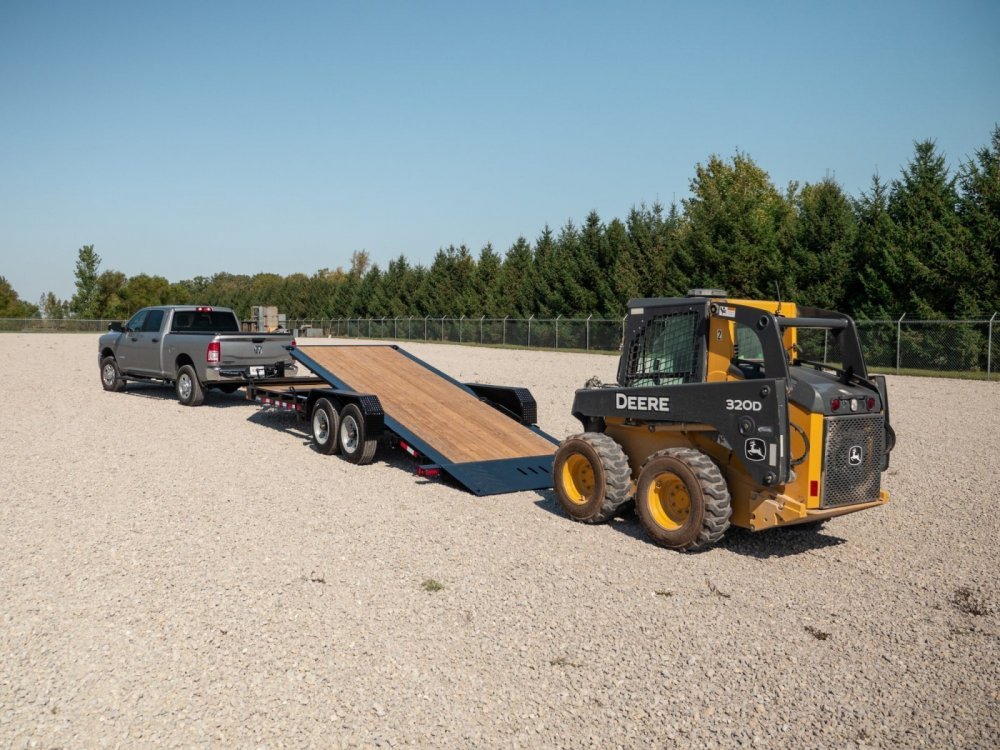

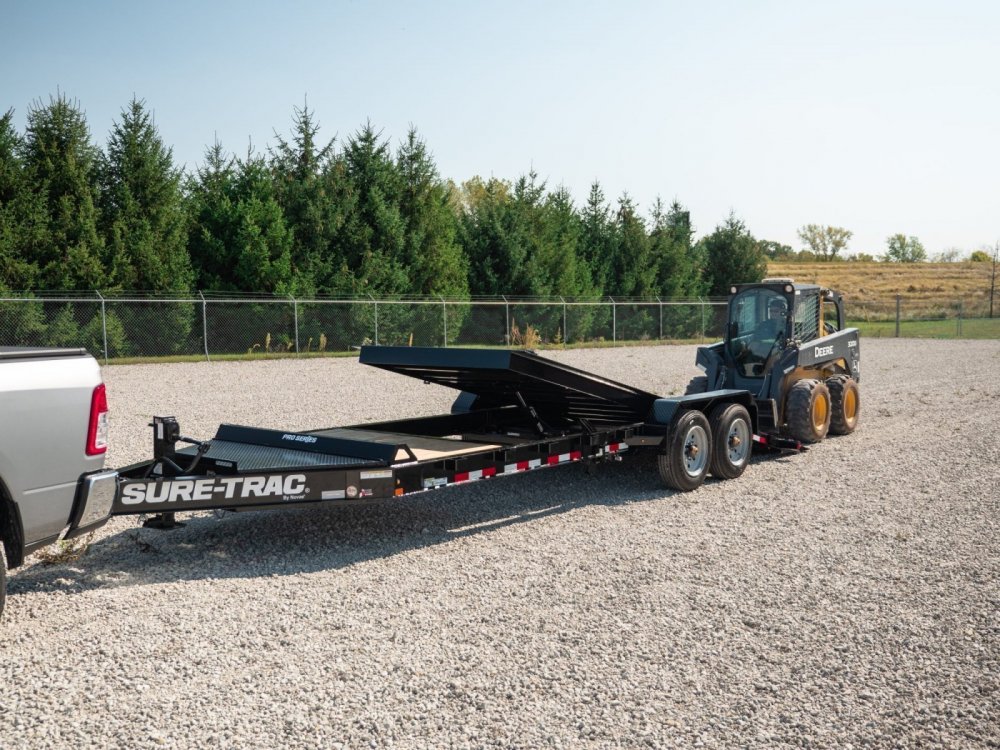

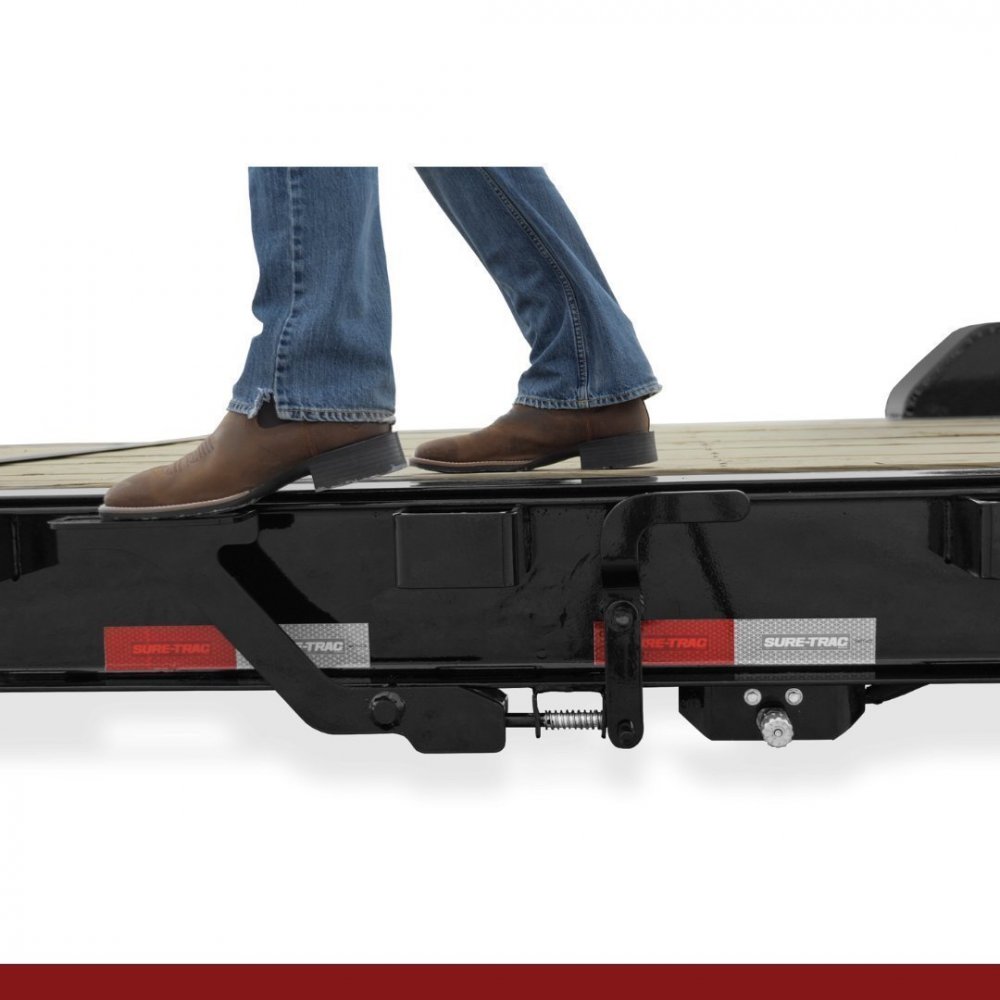

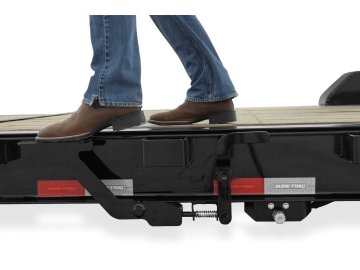

Tilt Angle - 13 Degree Tilt Angle

Additional Features:

Nested Frame
Tapered Entry for Full Width Loading

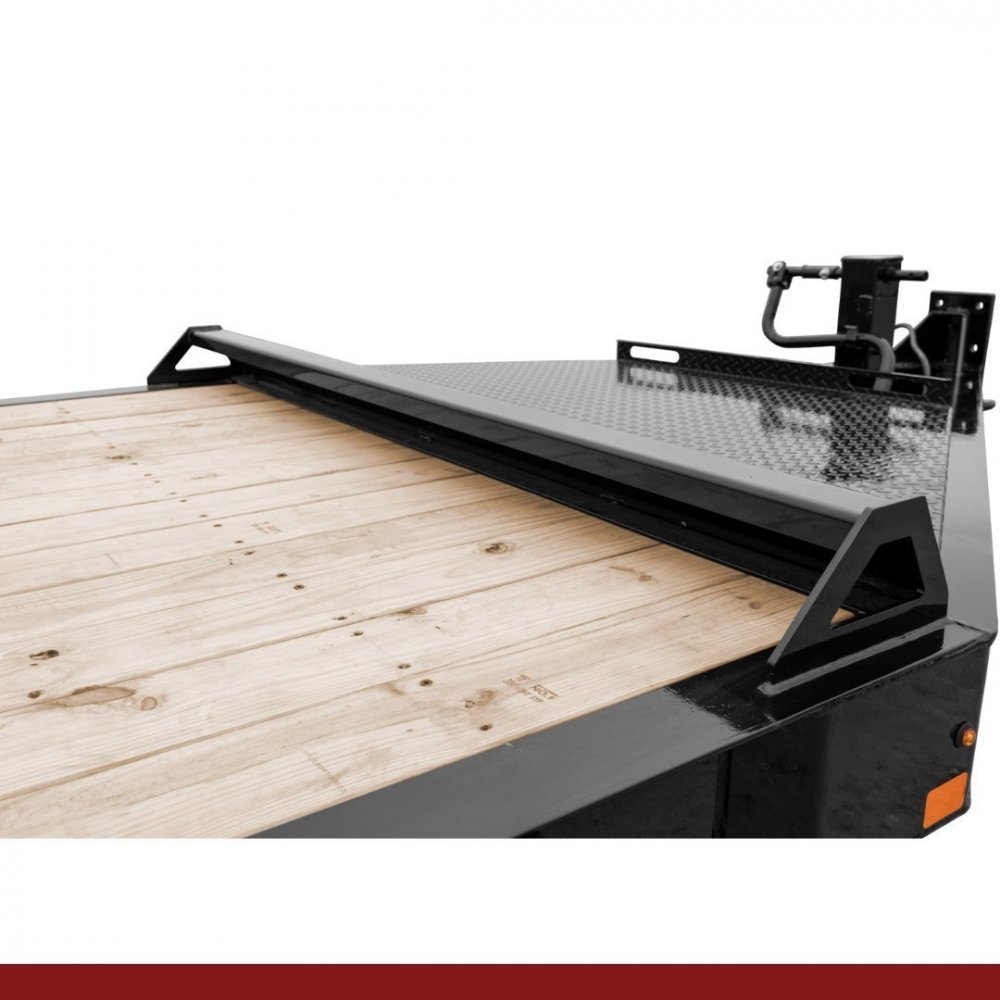

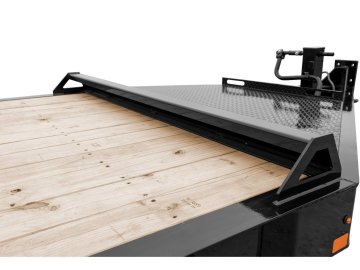

HD Tube Bulkhead
Safety Chains
Breakaway Switch with Battery
EverLink?? Wiring Harness
Sealed Brake Connections

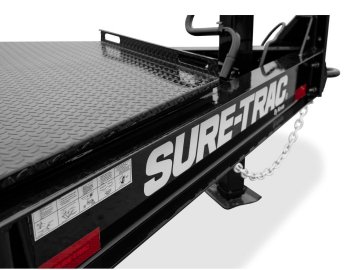

HD Diamond Plate Knife Edge Tail

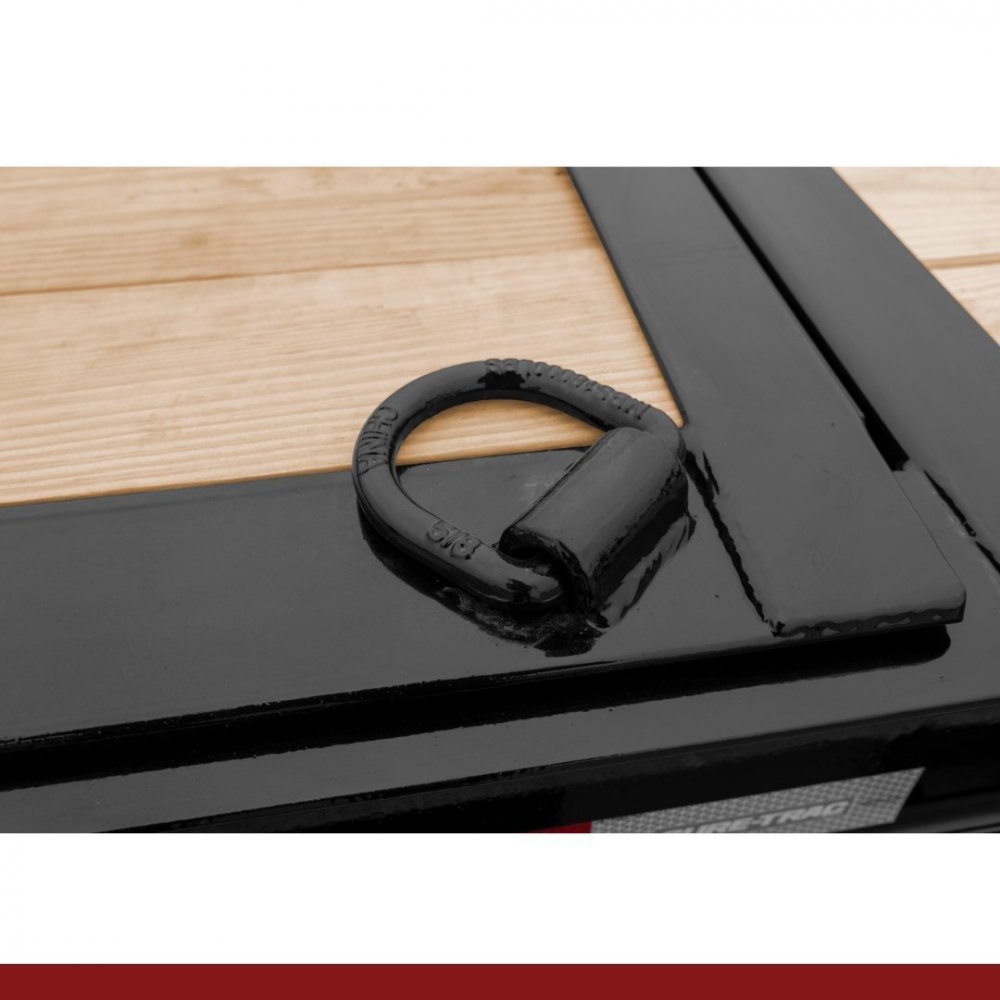

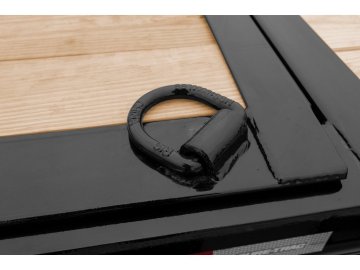

(4) D-Rings

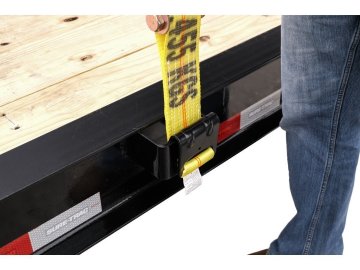

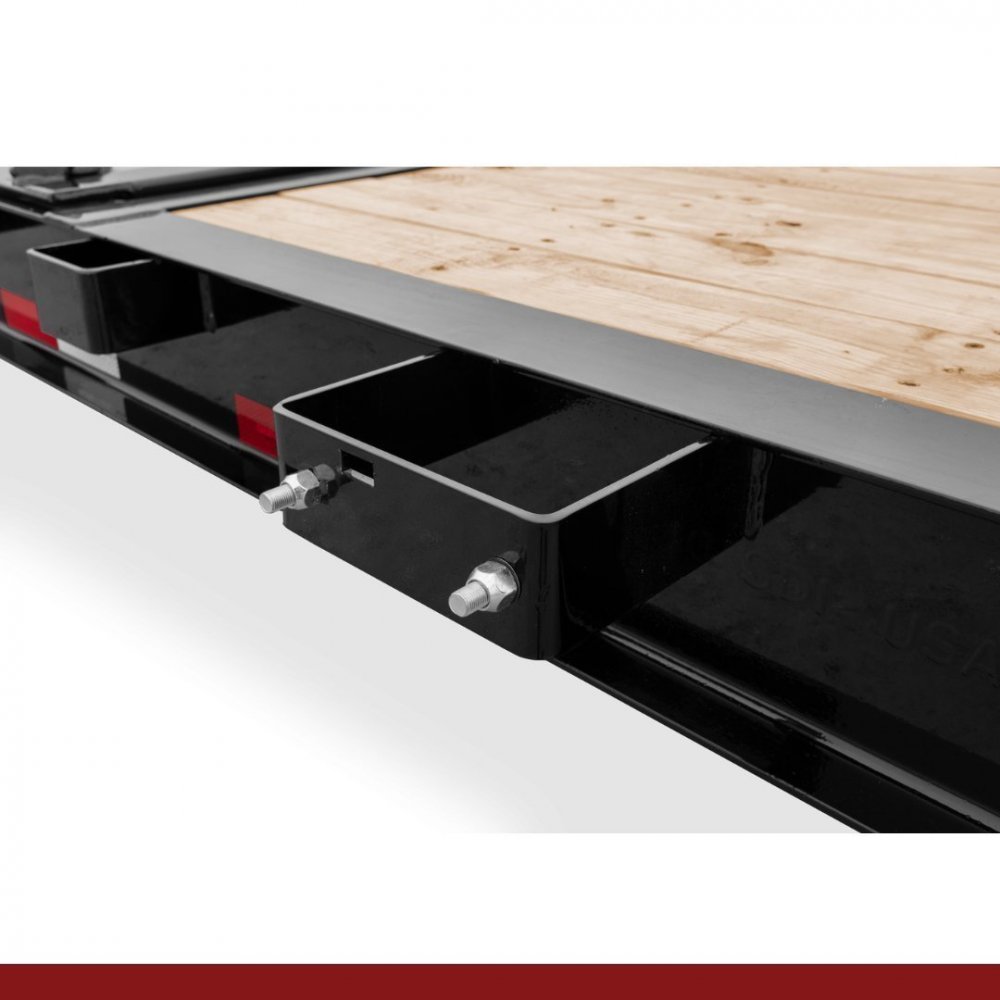

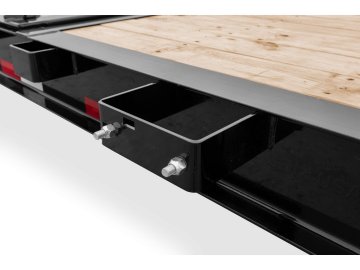

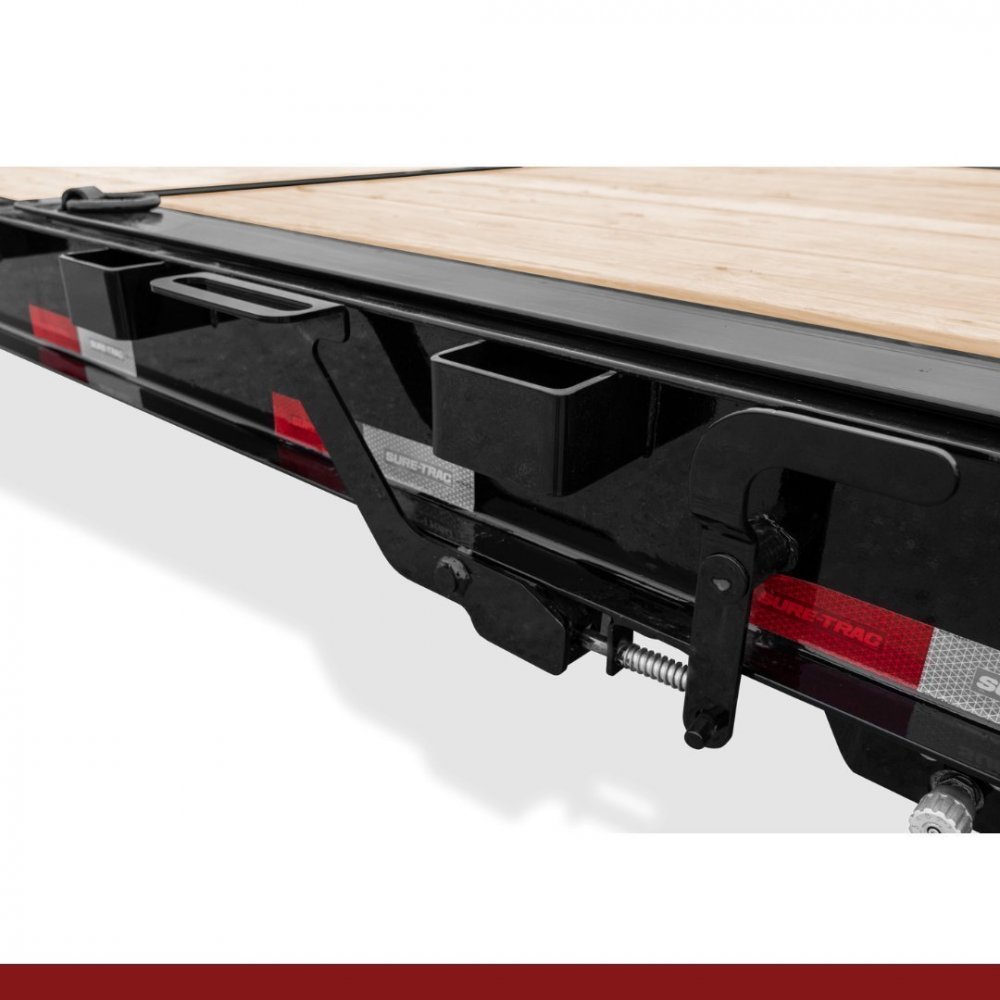

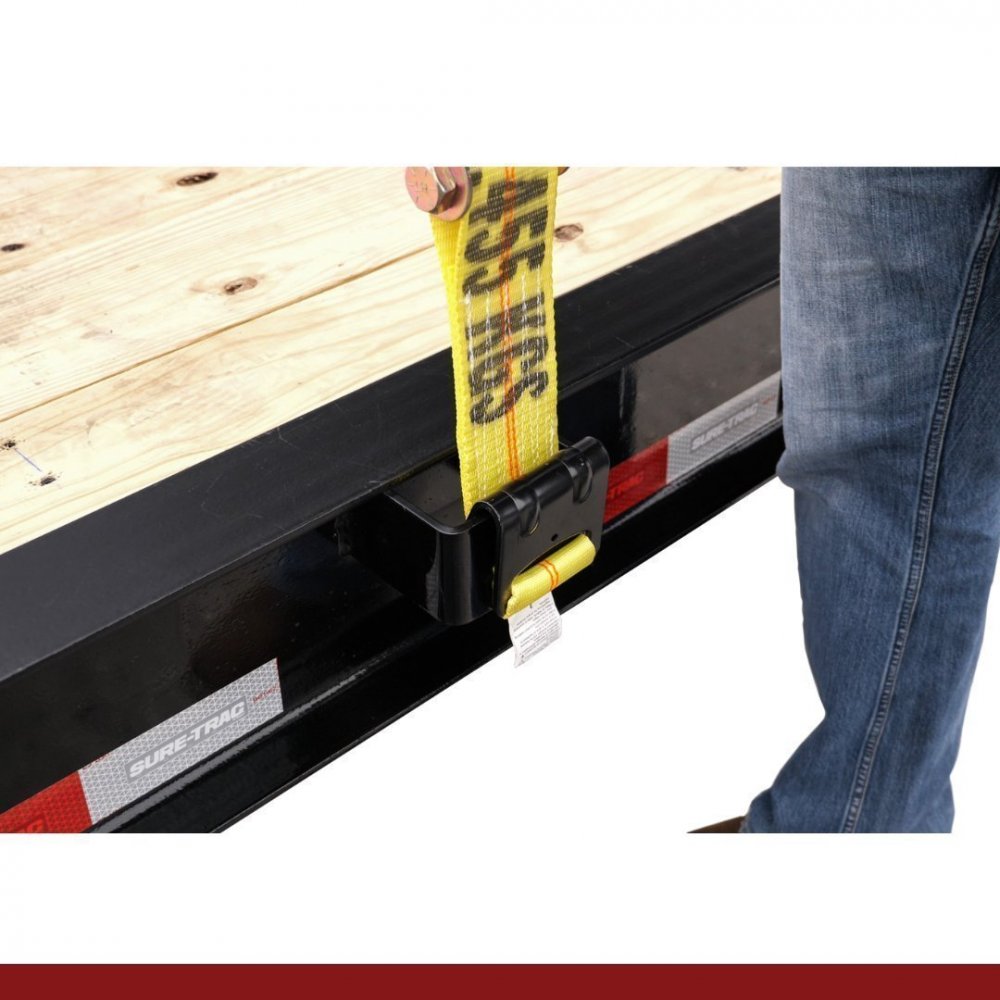

Stake Pockets and Rub Rail
Spare Tire Carrier
Hydraulic Dampener
Limited 3-Year Warranty
